iTestSystem Application: TestView Plus

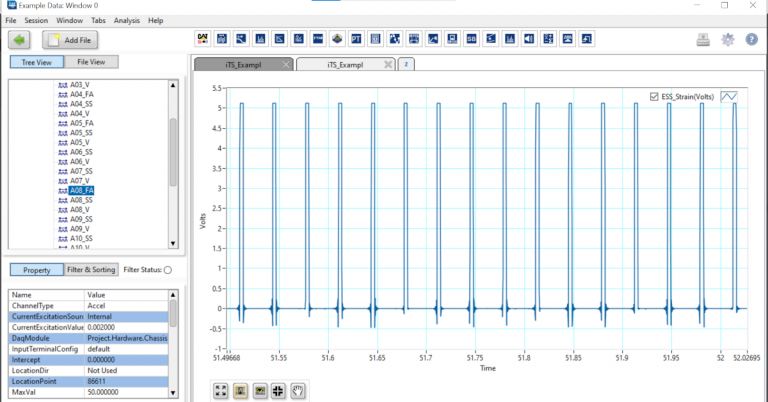

Tach Signal in TestView Plus

TestView Plus is an iTestSystem application for quick and easy viewing and analysis of data recorded in .TDMS files.  Test engineers can open data files and then simply drag and drop data channels into a variety of graphs and tables.  Data plotting algorithms allow for viewing and zooming into even the largest data files without running into memory issues.

TestView Plus has many features that allow test engineers to manage multiple data analysis projects at once.  TestView Plus Sessions allow for fast transitions between data processing projects.  A Session retains the current tab and graph information, analysis files, and data workspace.  TestView Plus Windows and Tabs allow for quickly adding and ordering new and existing data views.  The TestView Plus Reporting Utility allows for simple customized layouts sized to fit neatly in a report or presentation.

Besides data viewing, TestView Plus also provides access to the iTestSystem analysis functions.  Data analysis can be performed on data in an active Time History graph.  To run an Analysis tool, select an icon in the Analysis toolbar or select an option in the “Analysis” dropdown in menu toolbar.  Once the analysis is performed, the results will be graphed in a new window.
